Why Hydraulic Elevator Cylinder Design Matters

Hydraulic elevators depend on pressurized oil to raise and support the elevator car.

The hydraulic elevator jack contains a cylinder and a moving plunger. When the pump forces hydraulic oil into the cylinder, the plunger rises and lifts the elevator car.

At CED Elevator & Electrical, we help elevator contractors source hydraulic components, replacement parts, and modernization materials for reliable elevator operation.

However, not all hydraulic cylinders have the same safety features.

Older underground installations may contain single-bottom cylinders that lack the protective bulkhead found in newer designs.

Understanding the difference is essential when evaluating aging equipment.

What Is a Single-Bottom Elevator Cylinder?

A single-bottom elevator cylinder is an older hydraulic jack design featuring one metal plate welded to the bottom of the cylinder.

This construction was common before changes to elevator safety standards during the early 1970s.

The primary concern involves the welded bottom connection.

Underground moisture, soil conditions, and corrosion can gradually weaken the cylinder or its welded joints.

If the bottom fails completely, hydraulic oil may escape rapidly, allowing the elevator to descend at an unsafe speed.

Common Single-Bottom Cylinder Risks

• Corrosion around the bottom weld
• Uncontrolled hydraulic oil loss following a major failure
• Sudden elevator descent
• Environmental contamination from leaking oil
• Expensive emergency repairs and prolonged downtime

Not every older cylinder has deteriorated, but its design lacks the additional bottom-failure protection of a safety bulkhead.

What Is a Double-Bottom Elevator Cylinder?

A double-bottom cylinder contains an additional internal plate, commonly called a safety bulkhead.

This bulkhead separates the pressurized hydraulic oil from the outer bottom cap.

A small opening allows restricted oil flow if the outer bottom fails.

Instead of allowing hydraulic fluid to escape rapidly, the restricted opening is designed to limit the rate of descent.

Double-bottom designs became standard for new in-ground hydraulic elevator installations following code changes in the early 1970s.

Advantages of Double-Bottom Cylinders

• Additional protection against outer bottom failure
• Controlled oil release through a safety-bulkhead opening
• Reduced risk of uncontrolled descent from that failure mode
• Improved hydraulic jack safety compared with traditional single-bottom construction

However, double-bottom cylinders can still develop corrosion, leaks, and structural problems.

A double-bottom design is not the same as complete corrosion protection.

Single-Bottom vs. Double-Bottom Elevator Cylinders

The correct replacement decision depends on the installed equipment, governing code, and documented condition.

Why Underground Corrosion Is a Serious Concern

Corrosion can affect both single-bottom and double-bottom hydraulic elevator jacks.

Groundwater, soil chemistry, and long-term exposure can weaken underground steel components.

Because much of an in-ground cylinder remains buried, visible inspections cannot reveal every potential problem.

Modern installations commonly use protective PVC casings or other approved corrosion-resistant arrangements to isolate underground cylinders from surrounding soil.

According to the Wisconsin Department of Safety and Professional Services, double-bottom safety bulkheads improved protection against bottom failure, but corrosion remained a concern along cylinder walls and welded joints.

We recommend evaluating corrosion protection separately from cylinder bottom design.

Are Single-Bottom Elevator Cylinders Still Code-Compliant?

Code compliance depends on the elevator’s location, installation date, applicable regulations, and alterations.

ASME A17.1 introduced additional safety requirements for new in-ground hydraulic cylinder installations during the early 1970s.

However, an existing single-bottom cylinder does not automatically require replacement under every jurisdiction’s rules.

Some jurisdictions require replacement, approved protective devices, additional testing, or other corrective measures.

Building owners should consult their licensed elevator contractor and local authority having jurisdiction before determining compliance.

How to Tell Which Hydraulic Elevator Jack You Have

Identifying the existing cylinder design can be difficult because the bottom is buried underground.

We recommend reviewing:

1. Original elevator installation records
2. Hydraulic jack manufacturer documentation
3. Previous modernization and replacement records
4. Inspection and pressure-test reports
5. Available cylinder specifications

Installation age provides useful context but does not conclusively identify the equipment.

A qualified elevator contractor should confirm the configuration through appropriate records and evaluation.

When Should a Hydraulic Elevator Cylinder Be Replaced?

Replacement may become necessary when an older jack develops significant corrosion, structural defects, unexplained hydraulic oil loss, or fails required testing.

Other considerations include mandatory code upgrades and broader elevator modernization plans.

Watch for unusual oil consumption, recurring leveling problems, or unexpected changes in hydraulic performance.

These symptoms do not necessarily prove cylinder failure. Worn packings, valves, and other hydraulic components can produce similar problems.

Our related article on hydraulic elevator packings and seals explains how seal deterioration affects hydraulic performance.

Suspected underground cylinder leaks require prompt professional investigation.

Planning a Hydraulic Elevator Jack Modernization

Replacing an underground hydraulic jack requires careful planning.

Contractors must consider cylinder dimensions, plunger specifications, travel height, working pressure, existing borehole conditions, corrosion protection, and applicable safety requirements.

Environmental controls may also be necessary when removing old cylinders or contaminated materials.

At CED Elevator & Electrical, we support contractors with hydraulic fittings, packings, power units, and related modernization components.

Explore our elevator modernization products to coordinate compatible materials for hydraulic system upgrades.

Frequently Asked Questions

Why are single-bottom elevator cylinders considered a safety concern?

Older single-bottom cylinders lack a safety bulkhead. Severe corrosion or bottom weld failure can cause rapid oil loss and uncontrolled elevator descent.

Are double-bottom hydraulic cylinders safer?

Yes, their safety bulkhead provides additional protection against outer bottom failure. However, proper maintenance and corrosion protection remain essential.

Do all single-bottom elevator cylinders need replacement?

Not necessarily. Requirements depend on local elevator regulations, equipment condition, and approved safety alternatives.

Can a double-bottom elevator cylinder still leak?

Yes. Corrosion, damaged welds, worn seals, and other defects can cause leaks even with a double-bottom design.

Source Hydraulic Elevator Modernization Parts From CED

Understanding the difference between single-bottom and double-bottom elevator cylinders helps contractors and building owners make better safety and modernization decisions.

At CED Elevator & Electrical, we help elevator professionals source dependable hydraulic components, repair materials, and modernization products.

Whether you’re evaluating an aging hydraulic elevator jack or planning a larger equipment upgrade, our team can help coordinate compatible components.

What Is an Elevator Position Indicator?

An elevator position indicator helps passengers identify their location as the elevator travels between floors.

These displays typically appear above the elevator doors, within the car operating panel, or at selected hall stations.

At CED Elevator & Electrical, we help elevator contractors source compatible control equipment, fixtures, and modernization components.

Choosing the correct elevator floor indicator involves more than appearance. The display must communicate reliably with the existing elevator system and provide clear information to passengers.

LCD vs. LED vs. Legacy Elevator Displays

Different elevator display technologies offer distinct advantages.

1. LED Elevator Position Indicators

LED indicators use light-emitting diodes to display floor numbers, letters, and directional arrows.

Common formats include seven-segment numeric displays and LED dot-matrix panels.

Advantages of LED elevator indicators:

• Clear, bright floor identification
• Relatively straightforward display functions
• Compact installation options
• Low power consumption
• Suitable for many retrofit applications

LED elevator digital displays work especially well when the main requirement is showing the current floor and travel direction.

However, contractors must confirm voltage, communication signals, mounting dimensions, and controller compatibility.

2. LCD Elevator Digital Displays

LCD indicators use liquid crystal display technology to present floor information, directional symbols, and additional messages.

Many modern color displays use TFT LCD technology, which supports more sophisticated graphics and layouts.

Advantages of LCD elevator indicators:

• Customizable floor graphics
• Multiple text and information fields
• Modern cab aesthetics
• Flexible layouts and branding options
• Support for additional messages when the system permits

LCD displays may be suitable for hotels, commercial offices, hospitals, and high-end residential buildings.

They generally require more attention to screen configuration, interface hardware, viewing conditions, and long-term replacement availability.

3. Legacy Elevator Floor Indicators

Older elevators may use mechanical position indicators, illuminated floor numbers, incandescent lamps, or early-generation electronic modules.

Some legacy systems already use LED technology. The term “legacy” describes the age and supportability of the system rather than a single display technology.

Common concerns include:

• Failed lamps or display segments
• Unavailable replacement boards
• Worn connections
• Proprietary communication protocols
• Outdated mounting configurations

Replacing an older elevator floor indicator does not always require replacing the entire controller.

With compatible interface equipment, certain older systems can support modern display modules.

How Elevator Controller Compatibility Affects Display Upgrades

A new display must receive accurate floor-position information from the elevator controller.

This can become challenging when older controllers communicate differently from modern digital indicators.

Common interface considerations include:

Discrete Signals: Separate control inputs identify individual floors or display functions.

Serial Communication: Digital information travels through a compatible communication protocol.

Interface Conversion Boards: Specialized hardware translates signals between older controllers and newer displays.

CED’s fixture catalog includes DL-20 LCD position indicator options, EX-31 and EX-51 display configurations, and multiple controller interface arrangements.

Before ordering, we recommend confirming the controller manufacturer, communication requirements, available power, floor designations, and fixture dimensions.

Our elevator modernization products help contractors coordinate compatible fixtures, controllers, cab equipment, and related electrical materials.

ADA Requirements for Elevator Position Indicators

Elevator digital displays must do more than look attractive.

The U.S. Access Board’s elevator accessibility guidance explains the requirements for accessible car position indicators.

Under ADA Standards Section 407.4.8, relevant requirements include:

• Visible floor characters at least 1/2 inch high
• Indicators above the car control panel or elevator door
• Floor identification as the car passes or stops at served floors
• Appropriate audible floor announcements or permitted signals

Certain exceptions apply, including those involving destination-oriented elevators and qualifying lower-speed systems.

Importantly, replacing a display alone does not automatically establish ADA compliance.

We recommend reviewing the complete indicator and signaling arrangement against applicable accessibility standards and locally adopted elevator codes.

When Should an Elevator Position Indicator Be Replaced?

Not every malfunction requires an immediate modernization project.

However, replacement may be appropriate when the display experiences recurring problems.

Common warning signs include:

1. Missing or flickering floor numbers
2. Incorrect floor-position information
3. Dim or unreadable characters
4. Intermittent communication failures
5. Obsolete boards with limited parts availability

Before choosing a replacement, qualified technicians should determine whether the problem originates in the display, wiring, power supply, interface board, or controller.

For broader equipment planning, our related guide on elevator controller modernization and non-proprietary systems explains how controls and fixtures can be coordinated during upgrades.

Frequently Asked Questions

What is the difference between an LED and LCD elevator indicator?

LED indicators typically use illuminated segments or dot-matrix elements to display floor information. LCD systems support more flexible graphics, text, and layouts.

Can an old elevator position indicator be replaced without replacing the controller?

Often, yes. A compatible replacement display or interface conversion board may allow the existing controller to remain in service.

Are digital elevator floor indicators required by ADA?

ADA standards require audible and visible car position indicators for covered elevators, but do not mandate LCD or LED technology specifically.

Which elevator display lasts longer?

Service life depends on product quality, operating conditions, electronics, and maintenance. Neither LED nor LCD technology guarantees a specific lifespan.

Source Elevator Position Indicators and Modernization Parts From CED

The right elevator position indicator improves passenger communication and helps support reliable elevator operation.

At CED Elevator & Electrical, we supply elevator contractors with products for repairs, modernization, and new construction.

Whether you’re replacing an outdated floor display or coordinating a complete elevator modernization package, our team can help identify compatible components and sourcing options.

Need elevator position indicators or replacement display components? Contact CED Elevator & Electrical at 866-CED-ELEV to discuss your project specifications and available products.

At CED Elevator & Electrical, we treat excess motor heat as a symptom rather than a diagnosis. Finding the source early can help prevent damaged bearings, winding insulation failure, nuisance shutdowns, and a much more expensive traction machine repair.

How Hot Is Too Hot for an Elevator Motor?

An elevator motor will naturally produce heat while running. The concern starts when the temperature rises beyond the motor’s normal operating pattern or rated limits.

A motor that suddenly runs hotter than it did under the same traffic conditions deserves attention.

We recommend comparing current operating temperature against:

• Previous readings
• Motor nameplate ratings
• Manufacturer specifications
• Machine-room temperature
• Elevator traffic and duty cycle
• Current draw under comparable loads

Temperature trends are usually more useful than a single reading.

Fluke notes that excess motor temperature accelerates winding-insulation deterioration and that thermal patterns can help distinguish heat originating from windings, bearings, connections, or couplings.

1. Check the Elevator’s Actual Load and Duty Cycle

Overload is one of the first conditions we look at when diagnosing elevator motor heat.

A motor may be correctly sized for normal operation but still experience excess heat when traffic patterns change. Repeated starts during peak periods, unusually heavy car loading, or long operating cycles can increase thermal stress.

Siemens motor troubleshooting guidance lists both overload and excessive starts per hour among possible causes of motor overheating.

Questions worth asking include:

• Has building traffic recently increased?
• Does the motor become hot only during peak use?
• Are starts per hour unusually high?
• Does the car feel sluggish under load?
• Has motor current increased compared with previous service records?

If overheating follows heavy traffic rather than appearing continuously, duty cycle deserves close review.

2. Look for Restricted Cooling or a Hot Machine Room

Motors need to release the heat they generate.

Dust buildup, blocked ventilation passages, failed cooling fans, poor machine-room airflow, or high ambient temperature can prevent that heat from escaping.

This can create a motor that is electrically healthy but still runs excessively hot.

Check for obvious airflow restrictions around the machine while keeping proper clearance around rotating and energized equipment. Do not remove guards or enter hazardous areas without following the required safety procedures.

Siemens specifically lists insufficient ventilation and elevated cooling-air temperature among possible causes of overheated motors.

3. Listen for Bearing Problems

Bearings create another major source of traction motor problems.

A bearing that is worn, contaminated, over-lubricated, under-lubricated, misaligned, or damaged can generate additional friction. That resistance forces the motor to work harder and may create a concentrated hot spot around the bearing housing.

Warning signs can include:

• New humming or grinding sounds
• Increasing vibration
• Heat concentrated around a bearing
• Changes in machine noise
• Rough acceleration
• Unusual mechanical resistance

Siemens documentation lists lubrication problems, contamination, alignment forces, and bearing-current damage among conditions associated with excessive bearing temperature.

4. Check for Brake Drag and Mechanical Resistance

On a traction elevator, motor heat may originate from something the motor is being forced to overcome.

A dragging brake, poor alignment, gearbox problem on geared equipment, sheave resistance, or other mechanical binding can increase the load even when the elevator car is not overloaded.

We look at the entire drive system rather than assuming the motor is automatically defective.

If elevated motor current appears alongside unusual brake noise, slow starts, vibration, or excessive mechanical heat, the underlying load should be evaluated before replacing the motor.

5. Review Voltage, Phase, and Current Conditions

Electrical imbalance can create heat very quickly.

Potential problems include:

• Phase loss
• Voltage imbalance
• Loose or high-resistance connections
• Incorrect motor connections
• Excess current
• Winding faults
• Drive-related faults

Fluke notes that a single-phase condition can create excessive voltage imbalance, high current, and motor heating. Thermal inspection can also reveal abnormal heat at high-resistance electrical connections.

These checks require proper test equipment and qualified personnel. We do not recommend opening energized motor terminals, controllers, or drive equipment simply because the motor feels hot.

6. Review Controller and Drive Fault History

Modern elevator controls often provide valuable clues before physical damage becomes obvious.

Look for recurring events involving:

• Motor overload
• Overcurrent
• Phase loss
• Drive temperature
• Encoder faults
• Excessive start time
• Brake faults
• Undervoltage or overvoltage

A fault code should not automatically lead to replacing the component named by the controller. It provides a starting point for diagnosis.

CED covers this process further in our guide to interpreting elevator controller faults.

7. Compare Motor Heat With the Rest of the Machine

Location matters.

A uniformly hot motor suggests a different problem from one hot bearing, terminal connection, brake assembly, or coupling.

Thermal imaging can help trained technicians establish where heat originates and compare the motor against previous inspection data. Fluke recommends trending thermal images because a baseline makes abnormal hot spots easier to identify.

When Overheating Points Toward Modernization

Not every hot motor needs replacement.

A repair may solve the problem when the cause is a bearing, ventilation issue, connection, brake adjustment, or another correctable condition.

Modernization becomes more relevant when overheating occurs alongside obsolete controls, recurring drive faults, hard-to-source components, excessive energy use, repeated motor failures, or declining system reliability.

CED supplies coordinated materials for both geared and gearless traction elevator modernization projects, including controllers, cable, wire rope, electrical materials, and related components.

Diagnose the Heat Before Replacing the Motor

When elevator motor overheating appears, replacing the motor before finding the cause can lead to the same failure again.

At CED Elevator & Electrical, we recommend looking at operating load, duty cycle, ventilation, bearings, brake behavior, electrical balance, controller faults, and motor condition as one system.

Heat is often the warning.

Finding out what creates that heat is what protects the equipment.

Elevator maintenance costs are not limited to the technician’s invoice.

When equipment fails unexpectedly, building owners and contractors may also face tenant disruption, emergency callbacks, expedited freight, unavailable parts, and extended downtime.

At CED Elevator & Electrical, we support elevator contractors with parts for planned maintenance and urgent repair work. From a parts-sourcing perspective, one difference is clear: identifying wear before failure creates more options than waiting until an elevator is already out of service.

What Is Preventive Elevator Maintenance?

Preventive elevator maintenance is scheduled work intended to identify wear, deterioration, adjustment needs, and developing faults before they become equipment failures.

Depending on the elevator and its maintenance program, attention may include:

• Door rollers and operators
• Interlocks
• Relays and contactors
• Batteries
• Brakes
• Hydraulic seals and packing
• Pumps and valves
• Traveling cable
• Wire rope or suspension components
• Controllers and electrical connections

CED’s preventive maintenance guidance emphasizes that routine attention can identify worn components before they cause shutdowns and emergency repair costs.

For a deeper component-focused overview, see our guide to preventive elevator maintenance.

What Is Reactive Elevator Maintenance?

Reactive maintenance begins after a problem has already affected operation.

Examples include:

• Elevator doors will not close
• Unit stops responding
• Hydraulic leak causes performance problems
• Relay or contactor fails
• Battery failure creates a communication issue
• Leveling problem becomes severe
• Controller fault creates a shutdown
• Worn component breaks during service

Reactive work is unavoidable in some situations. Even well-maintained equipment can fail unexpectedly.

The concern is relying on breakdowns as the primary maintenance strategy.

Preventive vs. Reactive Elevator Maintenance

Preventive maintenance does not eliminate every breakdown. It reduces the need to discover every worn component through failure.

Why Reactive Elevator Maintenance Can Cost More

Emergency Labor

A scheduled maintenance visit and an unexpected shutdown at night, on a weekend, or during a busy building period can have very different labor implications.

CED’s analysis of low-bid maintenance agreements notes that overtime labor, emergency callbacks, excluded repairs, and unclear response terms can turn an inexpensive contract into a more costly arrangement over time.

Rush Parts Shipping

A worn component found during planned maintenance may be ordered before failure.

When the elevator is already down, that same component may become an urgent shipment.

The difference matters even more when the required part is uncommon, obsolete, or located at another distribution point.

Longer Downtime

If a technician arrives without the required replacement part, the elevator may remain unavailable while the component is identified, sourced, shipped, and installed.

For multifamily buildings, hospitals, offices, hotels, and other high-traffic properties, downtime can have operational consequences beyond repair cost.

Secondary Damage

A component that remains in service after significant deterioration may place additional stress on related equipment.

That does not mean every worn part creates a chain reaction, but early identification gives the maintenance provider an opportunity to address deterioration before a more complicated failure develops.

Does Preventive Maintenance Always Cost Less?

Not on every individual service visit.

Preventive maintenance requires scheduled technician time and sometimes replacement of components that have not completely failed.

The financial benefit becomes clearer when evaluating the elevator over a longer period.

A building should compare:

scheduled maintenance + planned parts replacement

against:

emergency calls + unexpected parts + premium labor + expedited freight + downtime + repeat failures

The lowest monthly maintenance bill is not automatically the lowest lifecycle cost.

How Maintenance Control Programs Fit In

Preventive maintenance should not simply mean replacing parts on an arbitrary calendar.

ASME A17.1 addresses elevator maintenance, testing, inspection, alteration, and repair, while the Maintenance Control Program framework establishes equipment-specific maintenance requirements and records. ASME currently lists A17.1-2025 as the latest edition, although the enforceable edition depends on what the local Authority Having Jurisdiction has adopted.

Building owners and contractors should therefore base maintenance on the equipment, applicable code, manufacturer information, operating conditions, and documented maintenance program rather than assuming every elevator needs exactly the same schedule.

Review ASME A17.1 elevator safety standards

Which Elevator Parts Benefit Most From Early Attention?

Door Components

Doors cycle far more frequently than many other elevator components.

Wear involving rollers, operators, tracks, and interlocks can eventually lead to nuisance callbacks or shutdowns.

Relays, Contactors and Fuses

Small electrical components can stop an entire elevator when they fail.

Planned inventory of common electrical parts can make repairs faster.

Hydraulic Components

Leaks, deteriorating packing, valve problems, and abnormal hydraulic performance can provide warning signs before complete failure.

Batteries and Emergency Equipment

Battery-powered communication and backup systems should not wait for a failure during an actual emergency to reveal that replacement was needed.

Obsolete Components

Older equipment creates another problem: a part may still function today but become increasingly difficult to source.

Preventive maintenance provides time to identify alternatives before the elevator is down.

Parts Planning Is Part of Preventive Maintenance

Preventive elevator maintenance works best when maintenance findings lead to parts planning.

CED stocks service and repair products from more than 100 manufacturers, including GAL replacement parts, Texacone packing, electrical components, batteries, starters, contactors, fuses, ventilation equipment, and related service products.

Contractors can browse our elevator service and repair parts to prepare for planned maintenance and shorten sourcing time when replacement components are identified.

Warning Signs a Reactive Strategy Is Becoming Expensive

Look for patterns such as:

• Increasing callbacks
• Repeated door failures
• Recurring leveling problems
• Repeated relay or contactor replacement
• Hydraulic leaks returning
• Frequent shutdowns
• Growing rush-order frequency
• Long waits for obsolete components
• Multiple repairs to the same system
• Increasing downtime

One failure does not prove that maintenance is inadequate.

Repeated failures are the stronger signal.

Prevent Failure When Possible, Prepare for It When Not

The long-term maintenance question should not be framed as preventive or reactive service.

Every elevator will eventually need repairs.

The stronger strategy is to use preventive maintenance to identify predictable wear early, plan replacement parts, track recurring problems, and reduce the number of failures that become emergencies.

At CED Elevator & Electrical, we help contractors support that approach with service and repair parts, alternate sourcing, inventory assistance, Just-In-Time delivery, and regional distribution across the United States.

Planned maintenance creates time to source the right component. Reactive failure takes that time away.

Frequently Asked Questions

What is preventive elevator maintenance?

Preventive maintenance is scheduled work used to inspect, adjust, clean, lubricate, test, and replace deteriorating components before they create equipment failures.

Is preventive elevator maintenance cheaper than reactive maintenance?

It can reduce long-term costs by limiting emergency callbacks, expedited parts orders, downtime, and recurring failures. Actual cost depends on equipment age, condition, usage, and maintenance requirements.

Can preventive maintenance stop every elevator breakdown?

No. Unexpected failures can still happen. Preventive maintenance is intended to reduce avoidable failures and identify predictable wear earlier.

Why is reactive elevator repair expensive?

Reactive work may involve emergency labor, rush shipping, extended downtime, difficult parts sourcing, and repairs performed after equipment has already failed.

What parts should elevator contractors keep available?

The answer depends on the installed equipment, but commonly planned items can include door components, relays, contactors, fuses, batteries, hydraulic seals, packing, and other known wear parts.

Building owners and facility managers often ask whether elevators need monthly, quarterly, or another fixed service interval.

There is no single maintenance frequency that is correct for every elevator.

A high-traffic passenger elevator in a hospital may have very different maintenance needs from a lightly used low-rise hydraulic elevator. The goal is to build the schedule around the equipment rather than forcing every unit into the same calendar.

How Often Should an Elevator Be Serviced?

Elevator service frequency should reflect the condition and operating demands of the individual unit.

Some elevators may receive frequent scheduled visits because of heavy usage, aging equipment, manufacturer requirements, or service-contract terms. Others may follow a different interval based on their Maintenance Control Program, or MCP.

ASME A17.1 uses an equipment-specific maintenance framework rather than establishing one universal monthly service rule for every elevator in the United States.

Owners should also remember that local jurisdictions may enforce different adopted editions of the elevator code.

What Determines Elevator Maintenance Frequency?

Several factors influence how often preventive elevator maintenance should occur.

1. Equipment Age

Older elevators may have accumulated wear, aging controls, worn door equipment, deteriorating seals, older wiring, or components that are becoming harder to source.

Age alone does not mean an elevator is unsafe. It can, however, increase maintenance demands and parts-planning needs.

2. Elevator Usage

Higher usage generally means more operating cycles.

Frequent operation can increase wear on door rollers, operators, interlocks, relays, brakes, buttons, fixtures, traveling cable, and other mechanical or electrical components.

A heavily used commercial elevator may therefore require different attention than a lightly used unit.

3. Equipment Condition

Two elevators of the same age can behave very differently.

Maintenance planning should consider callback history, door failures, oil leaks, leveling problems, unusual noise, vibration, electrical faults, and repeated component replacement.

Patterns matter more than one isolated issue.

4. Elevator Type

Hydraulic and traction elevators contain different systems.

Hydraulic maintenance may involve the pump, motor, hydraulic fluid, valves, seals, packings, and starter equipment.

Traction systems introduce components such as suspension means, sheaves, machines, brakes, drives, and encoders.

The elevator type helps determine what must be examined and maintained.

5. Operating Environment

Heat, moisture, dust, coastal air, parking structures, industrial environments, and temperature swings can all affect components differently.

Environmental conditions are another reason elevator maintenance frequency should be equipment-specific.

6. Manufacturer and MCP Requirements

Manufacturer guidance and the elevator’s MCP should help define required procedures and intervals.

Maintenance may include examinations, cleaning, lubrication, adjustment, repair, replacement, and testing according to the needs of the unit rather than an arbitrary calendar.

What Is an Elevator Maintenance Control Program?

A Maintenance Control Program is the documented maintenance framework for an elevator or escalator.

An MCP should identify items such as:

• Maintenance tasks
• Procedures
• Scheduled intervals
• Required examinations
• Required testing
• Equipment-specific requirements
• Maintenance records

The important point is that an MCP should reflect the actual equipment.

A generic checklist copied from another elevator may not properly address differences in age, technology, usage, or condition.

Elevator Maintenance vs. Elevator Inspection

Maintenance and regulatory inspection are not the same thing.

An elevator can undergo required inspections while also receiving routine preventive maintenance between inspections.

Inspection and testing requirements depend on the applicable jurisdiction and adopted code. Owners should verify local requirements with the Authority Having Jurisdiction.

Does a High-Traffic Elevator Need More Frequent Maintenance?

Potentially, yes.

High traffic increases operating cycles on doors, rollers, operators, contacts, relays, brakes, buttons, fixtures, and other components.

Rather than using an arbitrary trips-per-day threshold, maintenance frequency should respond to actual usage and observed wear.

A busy elevator showing recurring door issues may justify closer attention than a comparable unit operating only a few times each day.

Do Older Elevators Need More Frequent Service?

Older equipment may need closer maintenance when reliability begins changing.

Watch for:

• Increasing door callbacks
• Obsolete controls
• Repeated relay failures
• Hydraulic leakage
• Leveling problems
• Aging wiring
• Traveling cable wear
• Longer parts lead times

This is where parts availability becomes an important part of maintenance planning.

CED supplies elevator maintenance and repair parts for service, repair, and preventive maintenance needs, including door components, electrical supplies, packings, batteries, starters, contactors, fuses, and other replacement items.

What Should Be Checked During Routine Elevator Service?

The exact service scope depends on the elevator, but routine preventive maintenance can involve several systems.

Door equipment: rollers, hangers, tracks, door operators, interlocks, and protection devices.

Controller and electrical equipment: relays, contactors, connections, fuses, batteries, and fault history.

Hydraulic equipment: oil condition, leaks, pump, motor, valve, seals, and packing.

Traction equipment: brakes, suspension components, sheaves, drives, and positioning equipment.

Cab and fixtures: buttons, indicators, lighting, and emergency communication equipment.

The purpose is to identify wear before it creates an unexpected shutdown.

Warning Signs the Current Maintenance Schedule May Not Be Enough

One callback does not automatically mean the maintenance program is inadequate.

Patterns deserve more attention.

Warning signs can include repeated door failures, uneven floor leveling, jerky starts or stops, new vibration, abnormal noise, hydraulic leaks, controller overheating, frequent breaker trips, recurring relay failures, communication problems, and extended downtime.

Increasing replacement-part frequency can also indicate that the equipment needs closer lifecycle planning.

How Maintenance Frequency Affects Parts Planning

Preventive maintenance is not only about technician visits.

A strong maintenance program can help identify worn components before they cause extended downtime.

Teams may discover door parts approaching replacement, batteries losing capacity, hydraulic seals deteriorating, relays becoming unreliable, cable showing wear, or obsolete components that require alternate sourcing.

Sourcing those components before failure can reduce emergency orders and shorten outages.

CED supports contractors with service and repair parts, alternate sourcing, inventory assistance, and parts for multiple elevator manufacturers.

Maintenance Frequency Should Be Written Into the Service Contract

A maintenance agreement should clearly define expectations.

Important items include scheduled visits, scope of work, parts coverage, testing support, emergency callbacks, response expectations, records, exclusions, overtime terms, and obsolete-parts strategies.

Clear contract language helps building owners understand what preventive service is actually being provided rather than assuming every maintenance agreement includes the same work.

When Frequent Repairs Become a Modernization Question

Preventive maintenance cannot indefinitely solve obsolete controls, unsupported door equipment, chronic leveling problems, aging wiring, recurring hydraulic issues, or widespread parts obsolescence.

At some point, repeated failures may shift the discussion toward targeted modernization.

The decision should be based on equipment condition, reliability, lifecycle cost, and parts availability rather than age alone.

Build the Schedule Around the Elevator, Not a Generic Calendar

The correct elevator maintenance schedule depends on the equipment actually operating in the building.

Age, usage, condition, environment, technology, manufacturer recommendations, callback history, the MCP, and applicable code requirements should all influence service frequency.

A documented preventive maintenance program also gives contractors an opportunity to identify replacement components before a worn part becomes an emergency order.

CED Elevator & Electrical supports elevator contractors and maintenance teams nationwide with service and repair parts, alternate sourcing, inventory support, modernization materials, and regional distribution.

Frequently Asked Questions

How often should an elevator be serviced?

There is no universal interval. Maintenance frequency should reflect equipment age, design, usage, condition, environment, manufacturer guidance, the MCP, and jurisdictional requirements.

Do elevators need monthly maintenance?

Some elevators or service contracts may call for monthly visits, while others may follow a different schedule. The interval should come from the equipment-specific maintenance program and applicable requirements.

Do older elevators need more maintenance?

They may. Accumulated wear, obsolete components, increasing callbacks, and declining reliability can justify closer maintenance attention.

Is elevator maintenance the same as an inspection?

No. Preventive maintenance addresses operation and wear, while inspections and required testing evaluate compliance according to applicable jurisdictional requirements.

What is an elevator Maintenance Control Program?

An MCP is the documented program identifying maintenance tasks, procedures, examinations, tests, records, and scheduled intervals for a specific elevator.

At CED Elevator & Electrical, we also look beyond the valve itself. The pump, motor, reservoir, oil condition, temperature control, cylinder packing, and electrical controls all influence how smoothly a hydraulic elevator starts, levels, and stops.

Maxton vs. EECO vs. Texacone: What Is the Difference?

This distinction matters when troubleshooting a rough ride.

A technician may initially suspect the valve when the actual problem is cylinder friction, worn packing, contaminated oil, incorrect temperature, or a control-sequence issue.

Maxton Hydraulic Valves: Strong Adjustment and Support Options

Maxton manufactures hydraulic elevator control valves including UC-series mechanical valves and electronic options. Its published procedures cover bypass, acceleration, transition, leveling speed, stopping, relief settings, and troubleshooting.

Maxton also emphasizes that valve procedures are intended for skilled hydraulic elevator professionals. Its documentation notes that proper valve adjustment affects ride quality, pump performance, motor performance, and overall system efficiency.

Technicians searching for a Maxton valve adjustment guide should always identify the exact valve model before making changes. UC1, UC2, UC4, UC4M, UC4MR, and electronic valve procedures are not interchangeable.

The official Maxton valve adjustment procedures provide model-specific technical references.

When We Consider Maxton

Maxton can be a strong choice when a project requires:

• Predictable leveling control
• Replacement of an aging hydraulic valve
• Readily available service information
• Rebuild and maintenance components
• Compatibility with common hydraulic power-unit configurations

EECO Hydraulic Valves: Broad Application Range

EECO also produces dedicated hydraulic elevator control valves.

Its current catalog includes valve families for residential, LULA, and commercial applications. EECO states that valve adjustment should be performed by qualified hydraulic elevator professionals and recommends clean hydraulic oil with proper filtration.

Some EECO designs incorporate temperature compensation to help maintain more consistent operation as hydraulic oil viscosity changes.

That can be important because hydraulic elevator behavior can change as the machine room and oil move from a cold morning startup to sustained operation later in the day.

When EECO Makes Sense

We may evaluate EECO when:

• Replacing an existing EECO valve
• Matching a particular flow requirement
• Retaining familiar field-service components
• Modernizing an older hydraulic installation
• Temperature consistency is a major concern

The correct selection should always be based on actual job data rather than choosing a manufacturer by brand name alone.

Where Texacone Fits

Texacone should not be treated as a direct Maxton or EECO valve competitor.

Its products focus heavily on hydraulic elevator cylinder heads, packing sets, seals, alignment, sanding, and repair solutions. CED carries Texacone products such as Sure-Fit repair components, alignment systems, sanding sleeves, O-ring splicing products, and cylinder-head identification resources.

That becomes important when poor leveling is actually caused by friction at the cylinder.

Texacone notes that cylinder misalignment, damaged plungers, temperature extremes, and packing conditions can contribute to leakage or excessive friction.

A perfectly adjusted control valve cannot fully compensate for a mechanical cylinder problem.

What Causes a Hydraulic Elevator Valve to Leak?

A hydraulic elevator valve leaking internally or externally may involve several different conditions.

Common troubleshooting areas include:

• Contamination around valve seats
• Worn seals or O-rings
• Damaged solenoid components
• Worn pistons or guides
• Incorrect relief settings
• Contaminated hydraulic oil
• Cylinder packing leakage
• Improper valve sizing
• Excessive operating temperature

Maxton’s troubleshooting documentation specifically identifies debris, damaged valve components, worn seals, and contaminated strainers as possible causes of poor operation and drift.

Rather than repeatedly adjusting a valve to compensate for another fault, we prefer diagnosing the complete hydraulic system.

Hydraulic Oil Temperature Can Change Leveling

Oil viscosity changes with temperature.

When a hydraulic elevator runs too hot or too cold, technicians may see changes in acceleration, leveling, stopping, noise, or ride consistency.

That is where an elevator hydraulic oil cooler or tank heater may become part of the solution.

CED hydraulic power units can be configured with optional oil coolers, tank heaters, pressure gauges, low-oil switches, low-pressure switches, scavenger pumps, and other accessories.

For buildings with high elevator usage or machine-room temperature swings, stabilizing oil temperature can help maintain more predictable hydraulic performance.

Know the Hydraulic Elevator Power Unit Components

The valve does not work alone.

The four primary hydraulic elevator power unit components are:

1. Reservoir to hold hydraulic oil
2. Pump to move oil into the cylinder
3. Motor to drive the pump
4. Control valve to regulate flow, acceleration, leveling, and stopping

CED explains these components in our hydraulic elevator power unit guide.

A leveling complaint can originate from any part of that system.

Rebuild the Valve or Replace It?

A rebuild may make sense when the valve body remains serviceable and the problem is isolated to replaceable seats, seals, coils, solenoids, or internal components.

Replacement deserves consideration when:

• Valve wear is extensive
• Adjustment no longer produces stable operation
• Parts availability is becoming difficult
• The power unit is undergoing modernization
• Flow requirements have changed
• Repeated callbacks outweigh repair cost

Maxton documentation even recommends considering valve overhaul or replacement on a periodic basis when adverse operating conditions are present.

Selecting the Right Hydraulic Elevator Components

At CED Elevator & Electrical, we supply hydraulic elevator components for contractors working on repairs, modernization, and complete power-unit projects.

Rather than treating Maxton, EECO, and Texacone as interchangeable products, we match the actual problem to the right component. That may mean a control valve, rebuild kit, cylinder packing, oil cooler, heater, pump, motor, or complete hydraulic elevator power unit.

For technicians sourcing direct replacement parts, having the valve model, serial number, flow requirement, pressure, oil type, motor data, and existing power-unit information available can make component selection much faster.

Hoist Rope vs. Governor Rope: They Are Not Interchangeable

Both may look like steel cable, but they serve very different functions.

Elevator Hoist Rope

Hoist or suspension ropes carry the elevator car and counterweight in a traction system. They repeatedly bend over drive and deflector sheaves while transmitting traction forces.

The rope therefore needs the correct combination of:

• Tensile strength
• Flexibility
• Abrasion resistance
• Diameter
• Core construction
• Sheave compatibility
• Stretch characteristics

CED stocks traction steel fiber-core rope, pre-stretched rope, extra-high-strength rope, compacted strand products, steel-core Seale rope, and other configurations cut to length.

Governor Rope

Governor rope is part of the elevator’s overspeed safety system. It drives the governor and helps activate the safety mechanism when required.

Governor rope must provide predictable interaction with the governor sheave and gripping system. ASME requirements call for replacement governor rope to match the size, material, and construction specified by the governor manufacturer unless an approved alteration permits otherwise.

Never substitute traction rope for governor rope simply because the diameter appears correct.

What Does 8×19 Elevator Wire Rope Mean?

The designation 8×19 elevator wire rope describes its basic construction:

8 strands × 19 wires per strand

That gives 152 strand wires arranged around a core.

CED’s catalog includes 8×19 Seale and Warrington configurations for elevator applications, with common diameters ranging from 3/8 inch upward depending on strength grade and application.

But “8×19” alone is not a complete specification. Different constructions within the same classification can behave differently.

Seale vs. Warrington Construction

8×19 Seale

A Seale strand uses the same number of wires in the inner and outer layers. The outer wires are larger.

That larger exterior wire diameter gives Seale rope strong resistance to crown wear and abrasion.

Gustav Wolf’s current 8×19 Seale elevator rope uses 152 load-bearing outer-strand wires and is marketed for standard traction elevators where flexibility and service life are important.

Best suited for: conventional traction installations where exterior wear resistance matters.

Warrington

Warrington construction alternates large and small wires in the outer strand layer.

That arrangement creates greater flexibility and favorable bending-fatigue characteristics, although the thinner outer wires can provide less abrasion resistance than Seale construction.

Best suited for: applications where repeated bending and flexibility are major design considerations.

The OEM specification and existing sheave system should always control the final selection.

Why the Rope Core and Lubrication Matter

The core supports the strands and helps maintain the rope’s geometry.

Fiber-core elevator ropes can also hold lubricant that reduces internal friction as individual wires move against one another during bending.

Too little lubrication can accelerate internal wear, corrosion, and fatigue. Excessive or incorrect lubricant can create traction problems.

Technicians should use only lubricant approved for the specific elevator rope and application.

A reddish powder known as rouge deserves special attention. It can indicate internal fretting and oxidation, often accompanied by diameter loss and accelerated deterioration. Our guide to early warning signs of elevator wire rope fatigue covers crown breaks, rouging, diameter reduction, and abnormal wear in greater detail.

Elevator Hoist Cable Inspection: What Technicians Should Check

A proper elevator hoist cable inspection should evaluate the full rope set rather than focusing on one visible broken wire.

Look for:

• Broken crown wires
• Valley breaks
• Diameter reduction
• Flattened outer wires
• Rouge or corrosion
• Kinks
• Birdcaging
• Unequal rope tension
• Core deterioration
• Abnormal stretch
• Sheave groove wear
• Poor lubrication
• Localized mechanical damage

Crown Breaks

Crown breaks occur at the exposed outer surface of the strand, often from bending fatigue combined with surface wear.

Multiple crown breaks concentrated within one rope lay are a strong end-of-life warning.

Valley Breaks

Valley breaks occur between strands rather than on the normal crown-wear surface.

These can indicate internal deterioration and deserve greater concern, particularly when rouge is present.

Quick Reference: ASME Rope Diameter & Discard Checks

Current elevator work should always follow the edition of ASME A17.1/CSA B44 and A17.6 adopted by the local authority having jurisdiction, along with OEM requirements.

Older ASME-derived tables commonly used for reference list a 1/2-inch rope replacement diameter of approximately 0.469 inch under normal wear, with more restrictive limits when rouge or unfavorable conditions are present. Current adopted tables must be checked before condemning or returning any elevator to service.

ASME’s current A17.6 Standard for Elevator Suspension, Compensation, and Governor Systems covers inspection and replacement criteria for elevator suspension means.

Equal Rope Tension Matters Too

Even a correctly specified rope can wear rapidly when load is not shared evenly across the set.

One tighter rope carries more load, sits differently in the sheave groove, and may develop accelerated crown wear. Loose ropes can also create unequal traction and shorten rope and sheave life.

Rope tension measurement and equalization should therefore be part of installation and ongoing maintenance.

CED supplies elevator wire rope and wire rope accessories for traction, governor, modernization, and repair work nationwide.

Match the Rope to the Elevator

At CED Elevator & Electrical, we recommend ordering from the rope data tag and OEM specification rather than relying on diameter alone.

Before placing an order, confirm:

diameter + construction + strength grade + core + lay + rope function + quantity + finished length

Choosing the correct rope protects traction performance, sheave life, ride quality, and long-term reliability.

How Hydraulic Elevators Work

A hydraulic elevator raises the car by pumping hydraulic oil from a reservoir into a cylinder. Pressure moves the piston, which lifts the elevator. During descent, a control valve releases oil back into the tank.

A typical hydraulic power unit contains:

• Hydraulic oil reservoir
• Electric motor
• Pump
• Control valve
• Shutoff and safety components
• Optional cooler, heater, gauges, or scavenger equipment

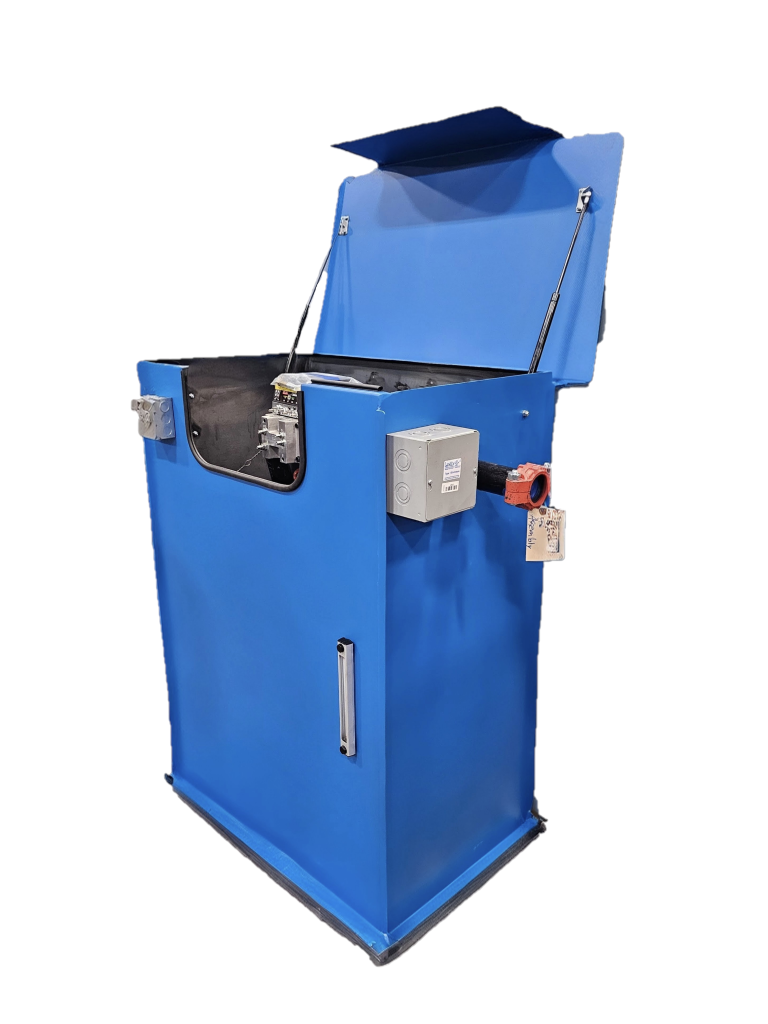

CED’s hydraulic power units use this same fundamental arrangement, with the pump providing pressure and the valve controlling acceleration, leveling, and descent.

Hydraulic equipment remains attractive for many low-rise commercial properties because of its straightforward mechanical arrangement and ability to handle substantial loads.

As one current example, the Otis HydroFit hydraulic elevator supports rated loads from 2,100 to 5,000 pounds, speeds of 100 to 125 feet per minute, up to four stops, and maximum travel of 26 feet 6 inches. Those figures are product-specific, but they illustrate where modern hydraulic systems commonly compete.

How Gearless Traction Elevators Differ

Traction elevators suspend the car and counterweight using ropes or belts that pass over a drive sheave.

Instead of lifting the entire car through hydraulic pressure, the motor moves a balanced car-counterweight system.

Modern gearless traction equipment can provide:

• Higher travel speeds
• Greater vertical travel
• More stops
• Strong performance under heavier traffic
• Reduced dependence on hydraulic oil
• Machine-room-less configurations
• Regenerative-drive options on certain systems

For comparison, one current KONE machine-room-less traction replacement system supports speeds from 150 to 350 feet per minute, 2,000 to 5,000-pound capacities, up to 15 landings, and as much as 150 feet of travel.

This helps explain why traction becomes increasingly attractive as building height and traffic increase.

Hydraulic vs. Traction Elevator Comparison

The right answer still depends on the actual elevator rather than building height alone.

When Hydraulic Elevator Replacement Makes Sense

A hydraulic elevator replacement does not always mean removing the entire elevator.

If the cylinder, rails, entrances, cab structure, and other major components remain serviceable, modernization may focus on replacing aging equipment such as:

• Power unit
• Controller
• Valve
• Pump and motor
• Door operator
• Traveling cable
• Fixtures
• Electrical components

At CED Elevator & Electrical, we supply coordinated elevator modernization materials including hydraulic fittings, controllers, wire rope, traveling cable, door operators, fixtures, and related equipment for modernization contractors. CED notes that modernization scope should reflect the condition of the machine, hydraulic equipment, controller, wiring, doors, rails, and safety systems.

Keeping a hydraulic configuration can make sense when the building remains low-rise and the existing hoistway already works well for that system.

When Traction Elevator Conversion Becomes Attractive

A traction elevator conversion may make sense when an owner wants higher speed, greater traffic capability, reduced hydraulic equipment, or a longer-term modernization strategy.

Modern traction replacements can sometimes reuse portions of an existing elevator footprint. KONE, for example, markets a machine-room-less traction replacement system designed to fit existing hydraulic and traction shafts.

That does not mean every hydraulic shaft can accept traction equipment without changes.

Contractors may need to evaluate:

• Hoistway width and depth
• Counterweight location
• Rail loading
• Machine support requirements
• Electrical service
• Controller location
• Pit configuration
• Buffers
• Top-of-car clearance
• Door and entrance compatibility

A conversion therefore often approaches a complete modernization or replacement rather than a component-level upgrade.

Pit Depth and Overhead Clearance Can Decide the Project

Older buildings frequently have one major constraint: space.

Pit and overhead dimensions must accommodate the selected equipment plus required safety clearances.

Traction systems may require room for the car, counterweight, buffers, suspension equipment, machine components, and top-of-hoistway clearances. Hydraulic layouts must accommodate jack or cylinder arrangements, pit equipment, piping, and applicable safety requirements.

Exact requirements vary by elevator model, configuration, jurisdiction, and adopted code. This is why contractors should never assume that a modern traction package will fit because the existing hydraulic cab dimensions look adequate.

Modern MRL technology has expanded retrofit possibilities considerably. Schindler, for example, offers low-rise MRL traction equipment specifically positioned as an alternative to hydraulic systems and designed around space-saving installation.

For technical planning, contractors can also review the manufacturer’s layout drawings and the applicable ASME A17.1/CSA B44 requirements for the jurisdiction.

Modernize the System, Not Just One Component

An older elevator may have a new controller but still suffer from worn door equipment, obsolete wiring, an aging hydraulic power unit, or outdated fixtures.

That is why we recommend planning modernization as a system.

A coordinated package can include the controller, drive, power unit or machine, door operator, traveling cable, hoistway wiring, fixtures, and safety-related components.

Our related elevator modernization upgrade vs. replacement guide explains how contractors can determine which components remain worth retaining and which should be replaced.

Choosing the Right Upgrade for an Older Building

For a three-story building with moderate traffic and a serviceable hydraulic layout, upgrading the hydraulic system may offer the most practical value.

For a larger building requiring faster travel, more stops, stronger traffic handling, or elimination of aging hydraulic equipment, modern gearless traction may provide a better long-term platform.

At CED Elevator & Electrical, we help elevator contractors source modernization components for both hydraulic and traction projects. The strongest retrofit begins with accurate field dimensions, equipment condition data, rated load, travel, speed requirements, pit depth, overhead clearance, and the building’s long-term operating goals.

At CED Elevator & Electrical, we recommend selecting elevator interior materials as an engineered system rather than choosing wall panels based only on appearance.

Elevator Cab Finish Comparison

These characteristics vary by panel construction, substrate, thickness, finish, and mounting system.

1. Textured Stainless Steel: Best for Heavy Traffic

Stainless steel remains one of the most dependable elevator cab finishes for hospitals, office buildings, transit environments, universities, and busy multifamily properties.

Textured, patterned, or brushed stainless surfaces are especially useful because they can disguise everyday scuffs and fingerprints better than highly polished metal.

Advantages

• Excellent impact resistance
• Long service life
• Easy routine cleaning
• Nonporous surface
• Modern commercial appearance
• Good resistance to moisture

The main drawback is cosmetic scratching. A polished stainless wall can make scratches highly visible, while patterned or embossed surfaces typically camouflage wear more effectively.

For service elevators and other demanding applications, we often favor textured stainless because cosmetic longevity matters just as much as structural durability.

2. High-Pressure Laminate: Best Balance of Design and Cost

High-pressure laminate has become a highly versatile option for custom elevator wall panels.

HPL can reproduce wood grains, stone patterns, solid colors, metallic looks, and contemporary architectural textures without requiring the weight or price associated with some natural materials.

Formica describes HPL as having strong scratch, wear, and impact resistance due to its multilayer construction.

Advantages

• Large selection of colors and patterns
• Good impact and abrasion resistance
• Easy cleaning
• Lower material weight
• Replaceable individual panels
• Cost-effective customization

HPL works particularly well for apartments, offices, hotels, medical buildings, and modernization projects where designers want a custom appearance without creating an excessively heavy interior.

Panel substrate matters. Laminate applied to lightweight engineered backers can produce a significantly different cab-weight result than the same decorative surface installed over a heavy substrate.

3. Architectural Glass: Best for Premium Modern Cabs

Glass elevator interior cladding creates depth, reflectivity, and a premium architectural appearance that works well in luxury residential towers, hotels, corporate buildings, and high-end retail properties.

Options may include back-painted glass, laminated decorative glass, mirrored surfaces, or other safety-glazing assemblies approved for the application.

Advantages

• High-end architectural appearance
• Excellent color consistency
• Resistant to many stains
• Can visually enlarge a small cab
• Custom colors and patterns available

The biggest considerations are weight and maintenance.

Glass panels can add substantial mass compared with lightweight HPL systems. Fingerprints, water spots, and smudges are also more obvious, especially on reflective surfaces.

Edges and mounting systems need careful design because elevator interiors experience vibration, passenger impacts, carts, luggage, and cleaning equipment.

4. Wood Veneer: Best for Warm, Luxury Interiors

Natural wood veneer delivers something laminate cannot completely duplicate: real grain variation and depth.

Wood works exceptionally well in boutique hotels, private clubs, executive buildings, and luxury residential elevators.

However, natural veneer needs more care.

Carts, luggage, cleaning equipment, and passenger contact can dent or scratch the finish. Moisture exposure can also affect improperly protected wood products.

A common solution is combining wood-look or natural-wood accent panels with stainless-steel corner guards, handrails, reveals, and lower protection panels.

Elevator Cab Weight Cannot Be Ignored

Material selection affects more than aesthetics.

Elevator World identifies weight, code-compliant materials, attachment, durability, appearance, and installation as core considerations when replacing cab finishes. Added weight can influence elevator performance, reliability, and safety.

That makes weight calculations particularly important when replacing lightweight laminate with glass, stone-look assemblies, heavy stainless panels, or thicker decorative systems.

ASME A17.1/CSA B44 addresses elevator design, alteration, repair, inspection, and testing requirements. The edition enforced varies by jurisdiction, so cab modifications should be reviewed by qualified elevator professionals and the authority having jurisdiction.

For reference, see the official ASME A17 Elevator and Escalator Standards.

Which Elevator Interior Material Should You Choose?

We generally recommend matching materials to building use:

High-traffic public building: Textured stainless steel
Office or multifamily property: HPL with stainless accents
Luxury hotel or condominium: Glass, veneer, or mixed materials
Service elevator: Heavy-duty textured stainless
Budget-conscious modernization: HPL modular wall panels

A mixed-material design can often produce the best result. Stainless kick plates and corners can protect high-impact areas while HPL, wood, or glass provides the visual character.

CED supplies materials for complete elevator modernization projects, along with cab-related products, handrails, fixtures, entrances, doors, and custom products. CED’s catalog specifically includes cabs and interiors among its custom product capabilities.

For broader planning considerations, see our related guide, How to Choose the Right Elevator for Your Building.

Custom Elevator Cab Interior Finishes From CED

The right elevator interior has to balance appearance with weight, wear resistance, maintenance, code compliance, and long-term serviceability.

At CED Elevator & Electrical, our team can help elevator contractors, architects, consultants, and building professionals source custom elevator wall panels, elevator interior cladding, stainless finishes, cab components, handrails, fixtures, and modernization materials for new and existing applications.

Planning an elevator cab renovation? Contact CED Elevator & Electrical to discuss custom cab interior finishes, wall panel fabrication, and material options for the project.

At CED Elevator & Electrical, we approach door problems from the complete system rather than assuming every failure comes from the operator board. Doors, tracks, hangers, clutches, interlocks, detectors, motors, and controller signals all have to work together. CED currently supplies complete operators, headers, tracks, clutches, interlocks, sensors, bearings, belts, and other door-system components for repair and modernization work.

Safety Note: Elevator door locks, interlocks, car-top equipment, and operator circuits are safety-critical components. Diagnosis, adjustment, and testing should be completed by qualified elevator personnel using the manufacturer procedure and applicable code requirements.

1. Start With the Door Reversal Edge

When doors begin closing and immediately reverse, the detector often gets blamed first.

Start by checking for obvious physical causes:

• Debris inside the sill
• Misaligned door panels
• Binding rollers or hangers
• Damaged detector cables
• Loose edge connections
• Intermittent reopening inputs
• Excessive closing resistance

GAL’s MOVFR system provides a useful troubleshooting example. When its compatible infrared detector senses an obstruction, the operator activates its REOPEN relay. That relay sends the reopening request to the elevator controller, but the MOVFR then waits for a Door Open command from the main controller before actually reopening.

That distinction matters.

If the detector reacts and the REOPEN indication appears but the doors stay closed, we would verify the controller interface and Door Open command before replacing the edge.

For detailed GAL-specific settings, technicians can reference the official GAL MOVFR Installation and Adjusting Manual.

2. Check Mechanical Resistance Before Changing Parameters

An operator cannot electronically compensate for every mechanical problem.

Before increasing torque or modifying speed settings, check the door manually under the approved service procedure. Look for binding, hanger resistance, worn rollers, tight tracks, improper door overlap, loose linkage, or a dragging sill condition.

GAL specifically instructs technicians to move the doors manually during setup and check for binding to protect bearing life and establish proper operation.

Repeated stall-reverse events can also signal excessive resistance. On MOVFR equipment, motor current above the configured stall-reverse threshold activates the reopen function, making a mechanical problem appear electrical if the door movement is not checked first.

3. Diagnose Clutch Misalignment and Interlock Problems

Elevator door interlock adjustment should never begin by randomly moving the lock contacts.

First determine whether the clutch is correctly picking up the hoistway equipment.

Watch for:

• Clutch contacting rollers too early or too late
• Pickup rollers outside proper alignment
• Door hanger sag changing clutch height
• Bent clutch links
• Worn keeper or contact assemblies
• Excessive play in linkage
• Doors that close but fail to establish the safety circuit

GAL’s MOVFR procedure shows how closely clutch geometry affects operation. For that specific system, GAL calls for defined crank-arm and clutch-link positions in both the closed and open positions and recommends finishing adjustment by rechecking the fully closed position.

CED stocks GAL interlock assemblies and replacement contact components, including complete MOH interlock products within our Elevator Door Operators & Parts inventory.

4. GAL Door Operator Replacement

GAL’s MOVFR uses a closed-loop VVVF system with a three-phase AC motor, drive, PC board, optical door-position sensing, programmable parameters, and obstruction detection.

For buildings experiencing obsolete controls, noisy mechanical operation, repeated callbacks, inconsistent reopening, or worn linkage, replacing the legacy operator can make more sense than continuing individual repairs.

Our related guide on GAL Linear Door Operators for Elevator Modernization covers when a complete upgrade becomes the stronger option.

5. MAC Door Operator Upgrades

A GAL door operator replacement is not the only elevator modernization path.

Legacy MAC Type M, PMSSC, and HPMSSC operators can be upgraded using an OEM closed-loop conversion package available through KONE Spares. KONE states that the upgrade can help where heavy doors move slowly, sill debris causes stalls before interlocks make, shaft pressure affects closing, or more repeatable operation is needed.

The closed-loop conversion continuously controls door direction, velocity, acceleration, and motor torque rather than relying exclusively on older control methods.

That can make a retrofit attractive when the mechanical door equipment remains serviceable but the operator controls have become the weak point.

6. What About ECI Door Equipment?

ECI systems require careful component identification before ordering.

Current parts catalogs still identify ECI-specific items including headers, interlock contacts, limit switches, pickup rollers, chain rollers, sprocket assemblies, and other door hardware.

For an ECI retrofit, we recommend documenting the existing opening, handing, header dimensions, operator configuration, clutch, interlock arrangement, supply voltage, and door type before selecting replacement hardware.

That survey helps determine whether the best repair is an ECI-compatible component replacement, updated interlock package, or complete operator modernization.

Repair the Fault or Modernize the Operator?

Repair makes sense when the failure is isolated and the remaining door equipment is mechanically sound.

Modernization becomes more attractive when we see recurring board faults, obsolete components, repeated interlock callbacks, inconsistent reversal, excessive noise, worn linkage, or difficult parts availability.

The goal is not simply getting the doors through one more cycle. We want predictable operation that technicians can maintain and support for years.

Browse CED’s inventory of universal door operators and replacement interlock kits for elevator repair and modernization projects.
