72KG34AFP

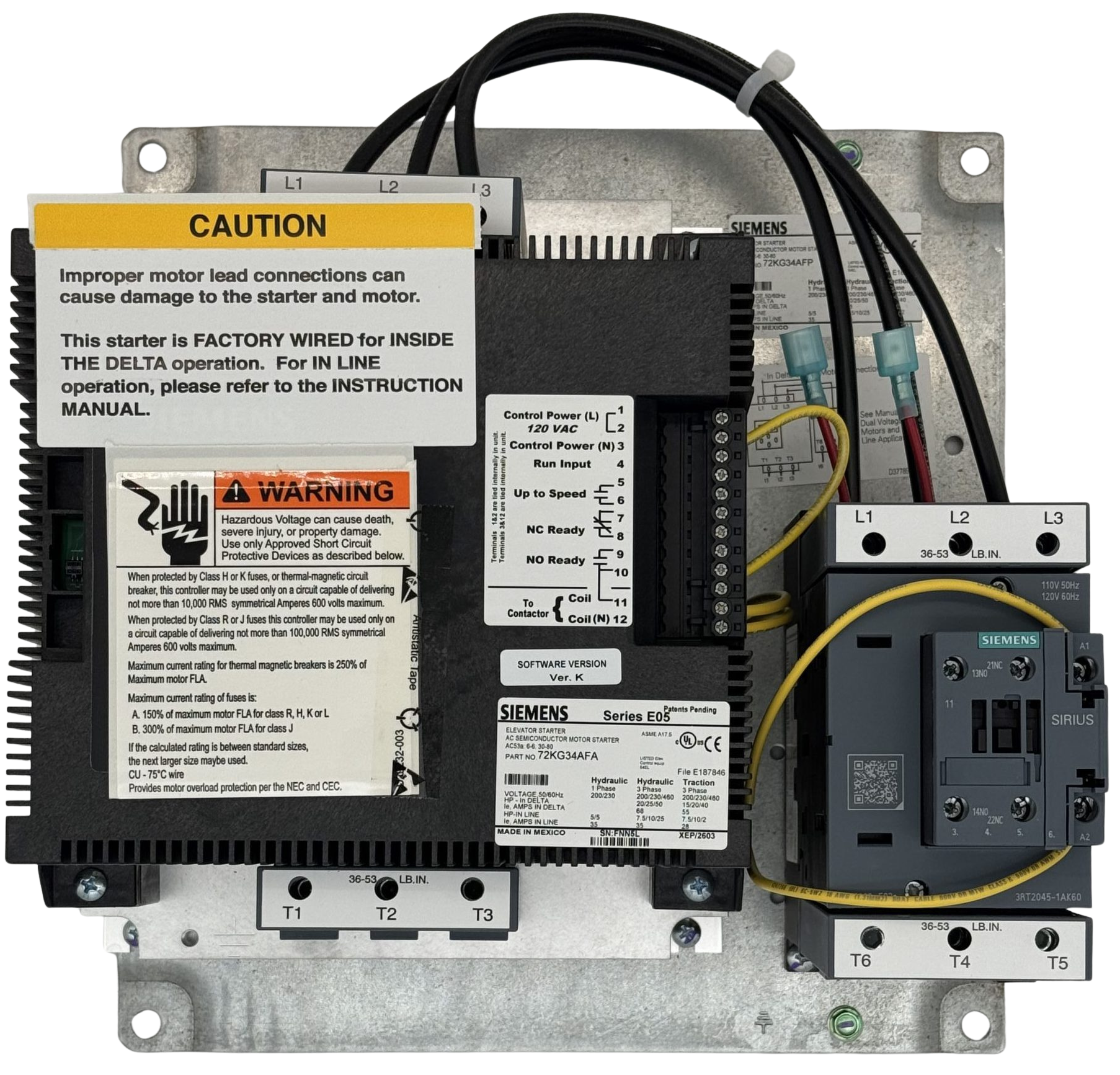

Flat-lay, top-down photograph of a complete Siemens 72KG34AFP elevator soft starter assembly. It shows the main electronic control unit, an attached SIRIUS contactor and overload module, wiring connections (L1-L3, T1-T6), and prominent, legible warning labels on a metal mounting plate.

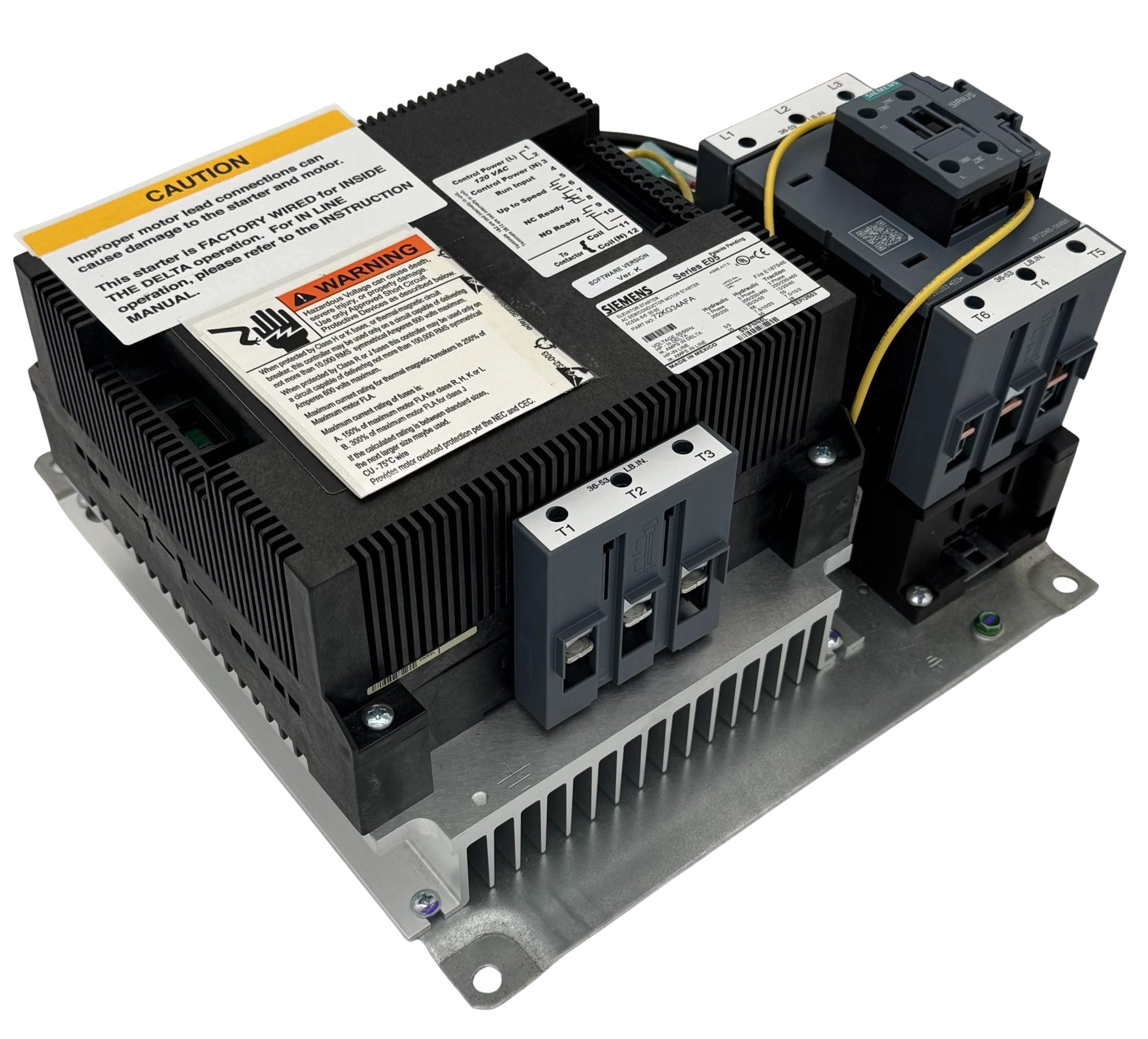

Siemens 72KG34AFP Class 72G hydraulic elevator soft starter, 68A, 480V, featuring integrated fault contactor, heat sink, and LCD diagnostic display.
Close-up of the data tag for a Siemens 72KG34AFA Elevator Starter, Series E05. Includes technical specifications for Hydraulic 1 Phase, Hydraulic 3 Phase, and Traction 3 Phase applications across various voltages and horsepower ratings.

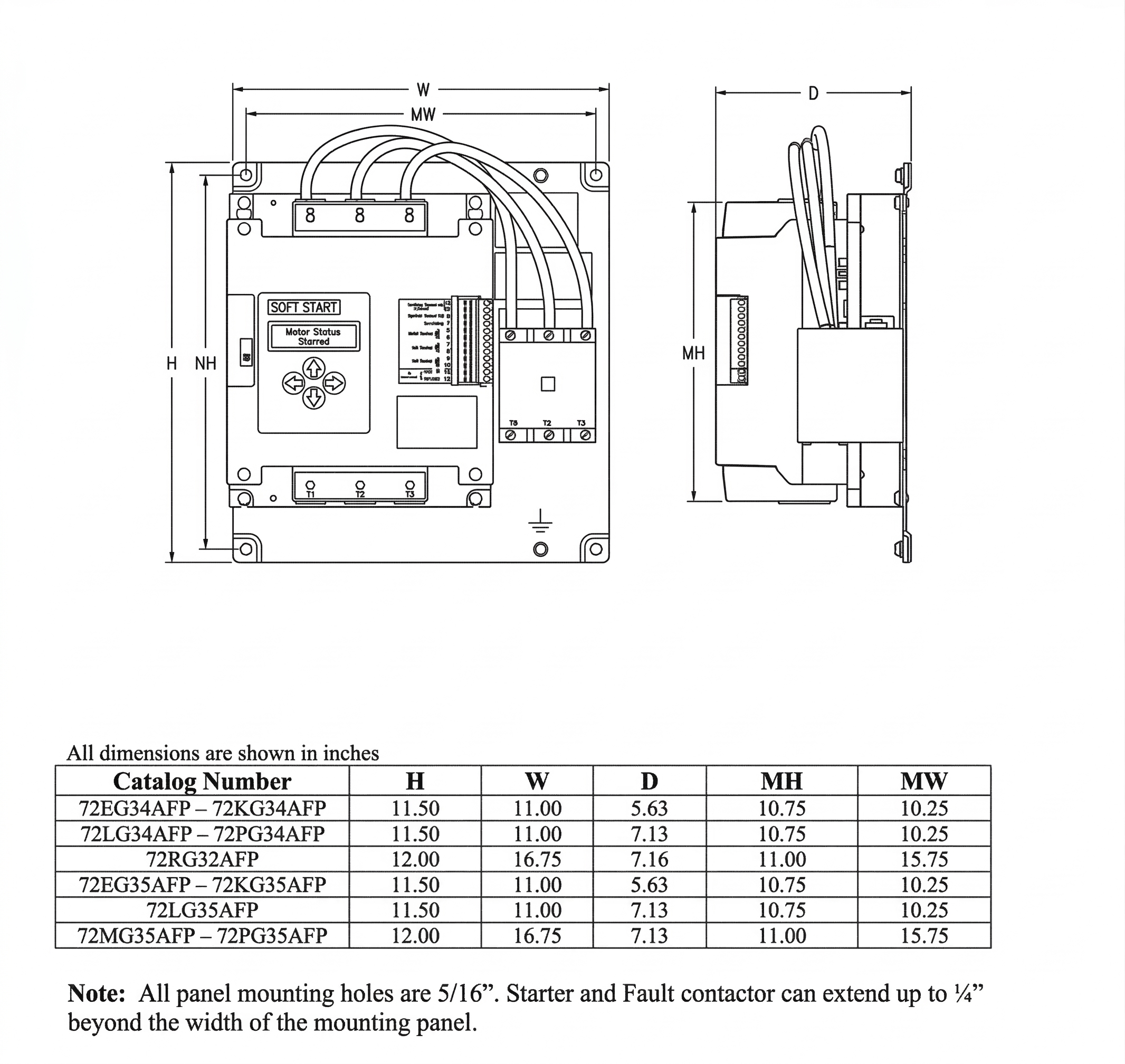

Technical dimensional drawing and size chart for Siemens Class 72G elevator soft starters. Includes Height (H), Width (W), Depth (D), and mounting hole patterns (MH, MW) for models 72EG, 72KG, 72LG, 72PG, 72RG, and 72MG.
Category:
Tags: , , , , , , , , , , , , , , , , , , ,
Brands:

Siemens Class 72g Elevator Soft Starter Setup Manual

Precision Control for Hydraulic Elevator Systems

The Siemens 72KG34AFP Class 72G soft starter is the industry standard for reliable, soft-start control in hydraulic elevator applications. Designed to replace or upgrade existing motor control systems, this assembly ensures your pump motor starts without the damaging torque spikes or high-current surges typical of across-the-line starters.

Key Features & Benefits:

  • “Inside the Delta” Ready: Factory-wired for 6-lead motor configurations, allowing for a more compact and cost-effective installation while maintaining high torque.

  • Integrated SIRIUS Contactor: Comes pre-assembled with a genuine Siemens SIRIUS 3RT contactor for integrated fault protection and isolation.

  • Enhanced Thermal Management: Mounted on a high-grade aluminum heatsink for superior heat dissipation during high-duty cycles.

  • Advanced Diagnostics: Features a clear, 12-point terminal block diagram for control power (120VAC), Run Input, and status signaling (Up to Speed, NC Ready, NO Ready).

  • Durable Construction: Built to withstand the demanding environment of an elevator machine room with a rugged Series E05 chassis.

Request a Quote
